Independent control of RGBW LED module channels by myGrenton application

The RGBW LED module allows for independent control of individual channels: R, G, B, W.



To independent control the channels of the RGBW LED module:

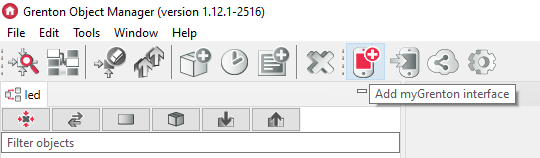

1. Create myGrenton interface:

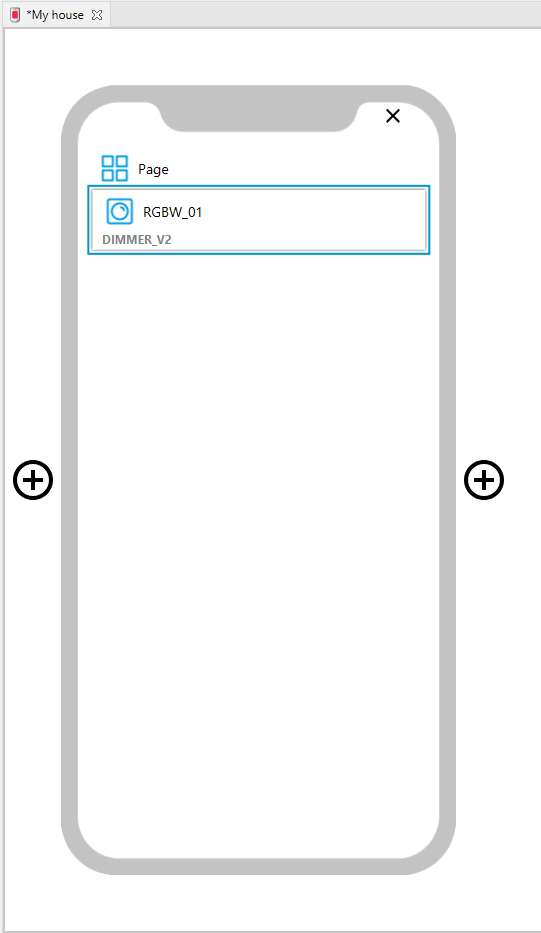

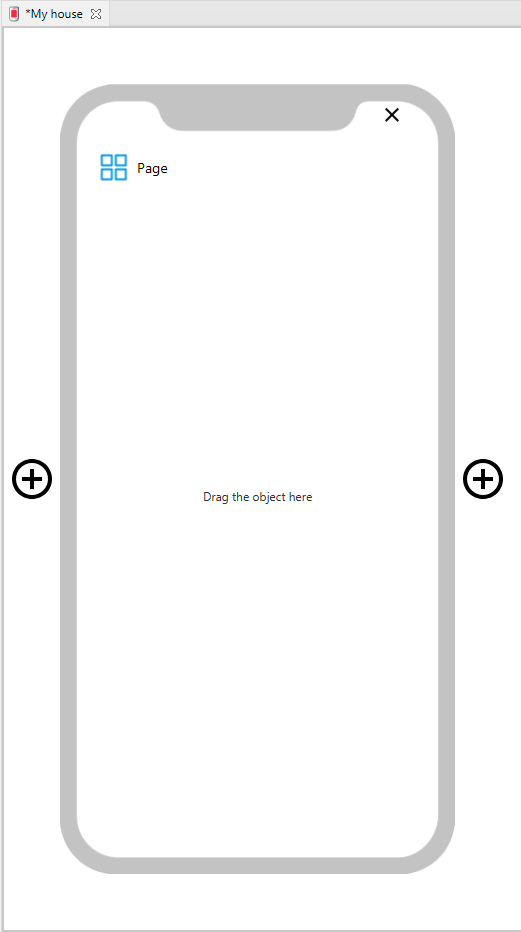

2. Find the RGBW LED module on the list of objects, drag its object into the interface field, and then select the Dimmer_V2 widget:

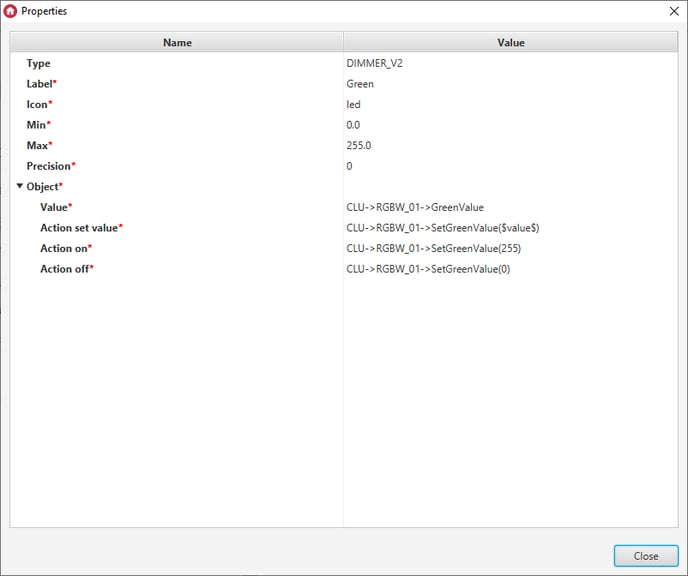

3. Once the widget has been added to the interface, double-click it and modify its settings as follows:

* for R channel:


* for G channel:


* for B channel:


* for W channel:

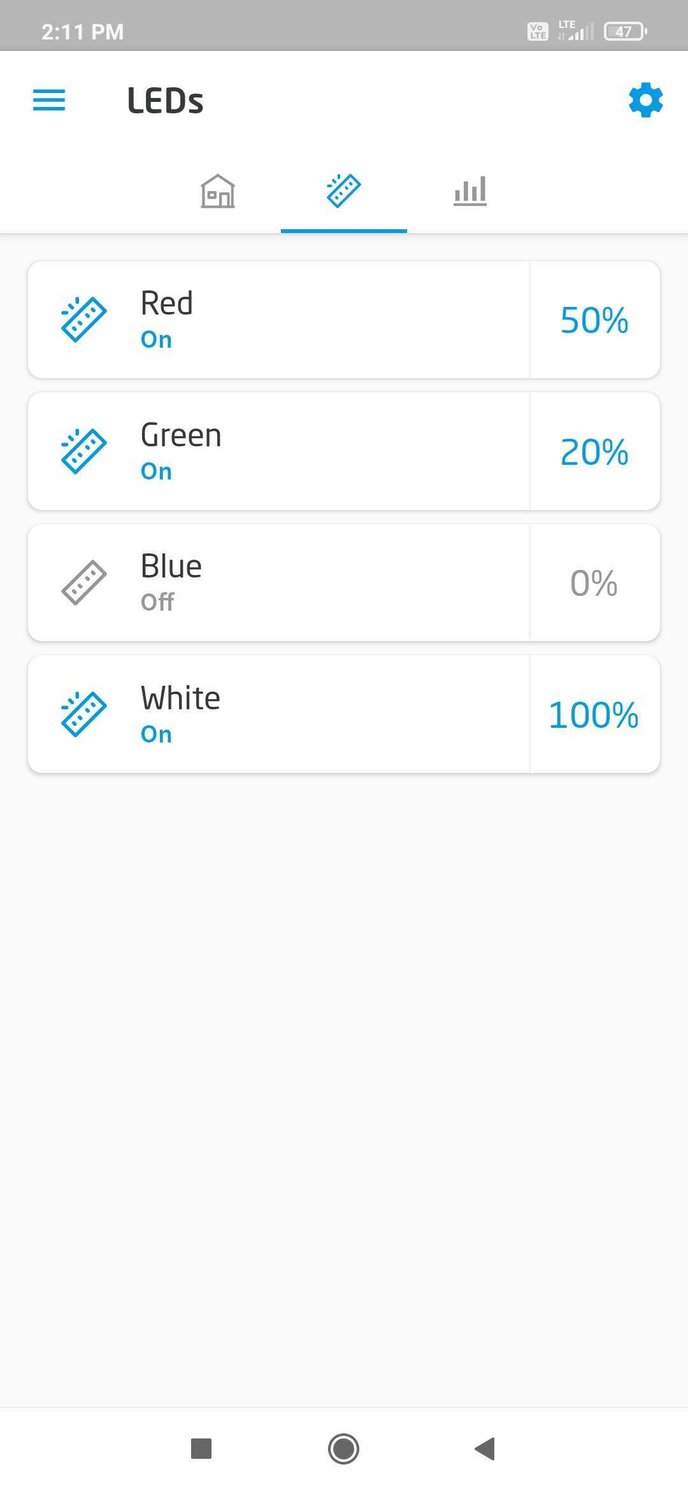

4. The interface created in this way should be sent to the mobile device:
