The purpose of this article is to present how to integrate the Bartosz recuperator with the Grenton Smart Home system via the Modbus RTU communication protocol.
Documentation is available at: Bartosz - dokumentacja
This integration allows us, among others, to read:
- control panel operation mode;
- efficiency;
- exhaust air temperature;
- supply air temperature
To implement the example below we need:
- Gate Modbus (o nazwie Gate_Modbus)
- Bartosz the recuperator
Modbus Virtual Object Configuration

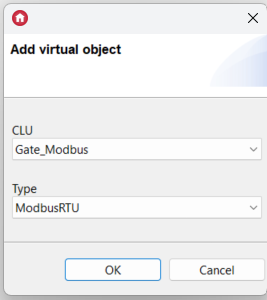

1. Create a Modbus virtual object:
2. For default recuperator settings - fill in the values of the features of the built-in virtual objects as follows:

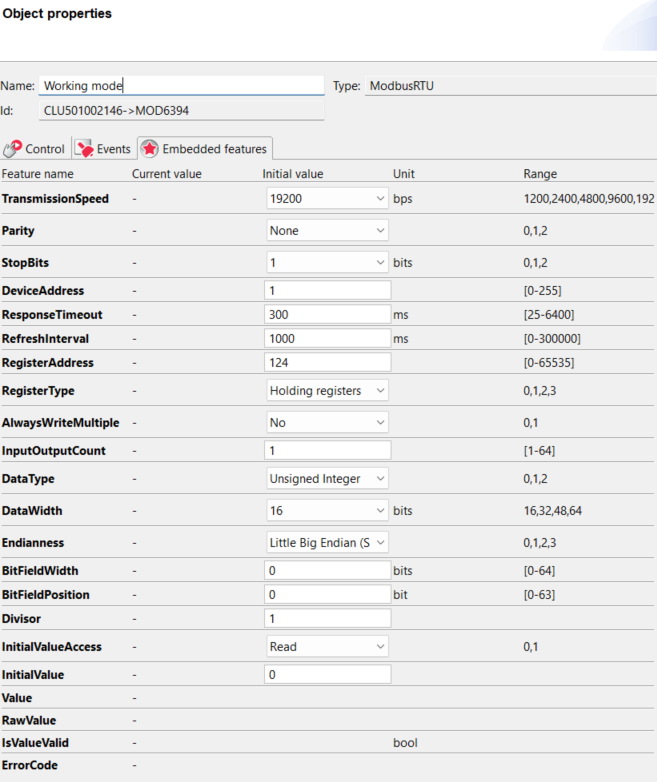

- Working mode

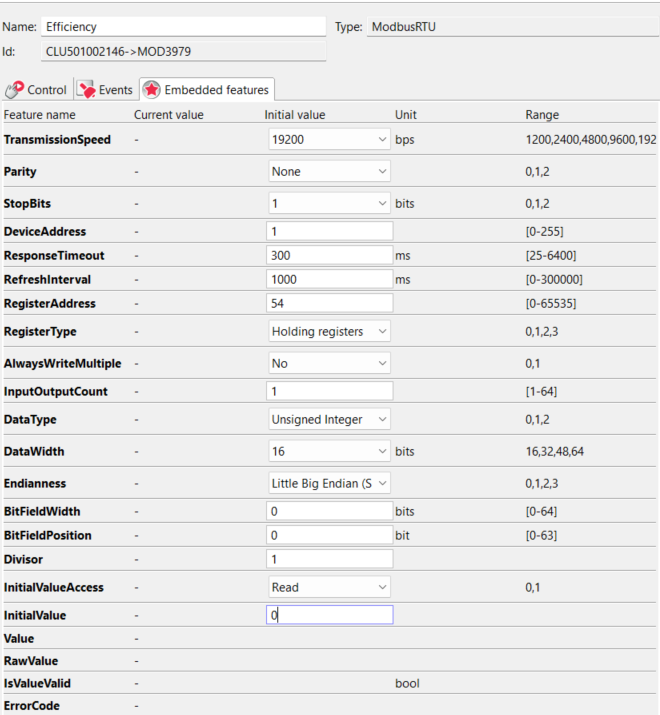

- Efficiency

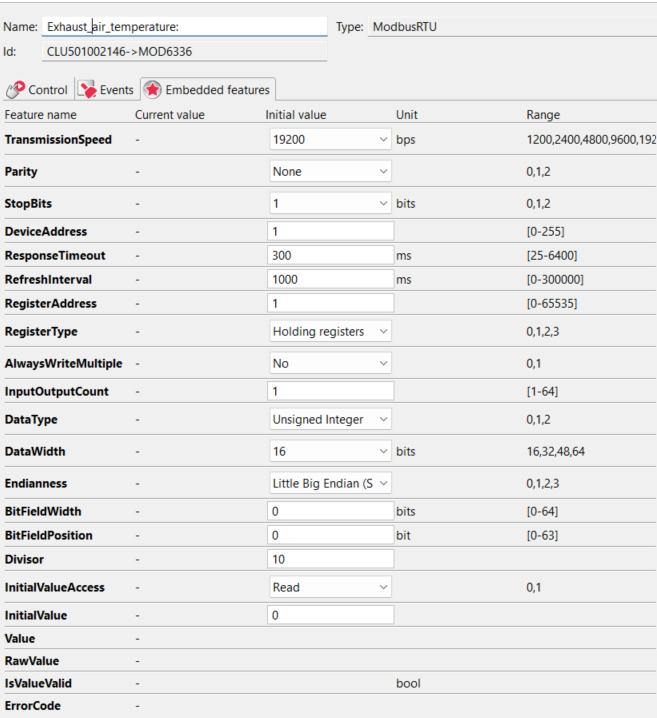

- Exhaust air temperature:

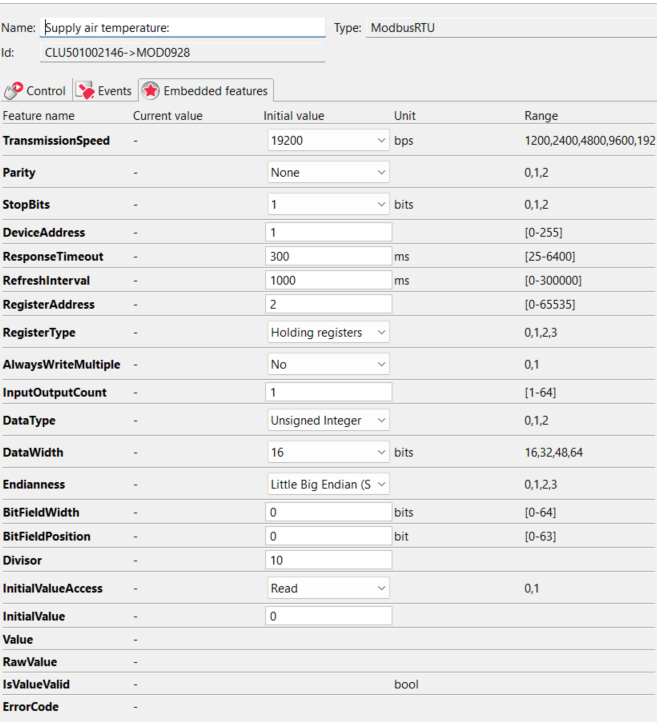

- Supply air temperature:
3. Send the configuration thus created to the Gate Modbus module.
