Intercom - configuration SIP

At least two SIP accounts are required to establish a connection between a mobile device with the myGrenton application and a Grenton video intercom.

To obtain accounts, please contact support@grenton.com by sending a photo with the serial number of the device (located on the back of the case). In response you will receive the necessary data that you will enter in the next steps.



  1. SIP in the myGrenton application

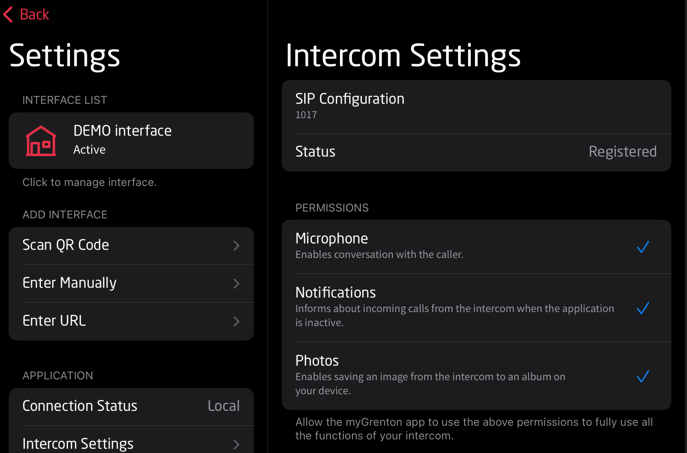

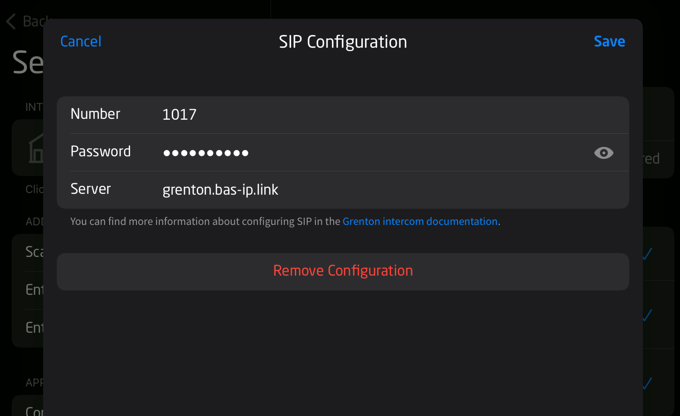

    In the myGrenton application settings, in the Intercom Settings->SIP Configuration field, enter the first Account Number and Password

Correct login to the server will be confirmed in the "Status" field



2. SIP settings in the video intercom panel

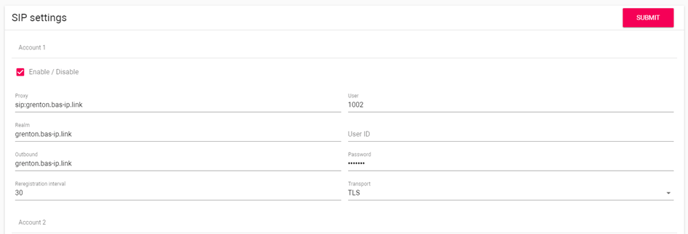

  • Enter the IP address of the video intercom panel in the browser and go to the "Panel" tab, enter the second SIP number (User) and password

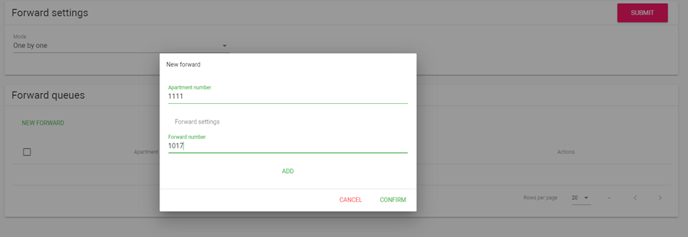

  • Go to the Forward tab and add a new redirection
    Apartament number: 1111 (for default settings)
    Forward number: the SIP account number that was entered into the myGrenton application, in our case it is 1017



You can also watch a video demonstrating the SIP account configuration here:
