Integration with aeoVent recuperator


Note! The following instruction is dedicated for the second generation of Modbus Gate module (FW: 1.1.10-2140)!


The purpose of this article is presenting an integration of Grenton system with aeroVent recuperator using Modbus RTU communication protocol.



The documentation is available at: aeroVent - documentation.



This intergation allows us to read:

  • device status;
  • supply and exhaust fan speeds;
  • operating mode;
  • temperatures from available sensors;
  • bypass and ground heat exchanger status;

and to control such parameters as:

  • selection of operating mode;
  • fan speed predefinitons for individual modes.


In order to execute this integration, there are needed:

    • Gate Modbus (named Gate_Modbus)
    • Recuperator aeroVent (Reversus, Flat)



    Configuration of Modbus RTU virtual objects

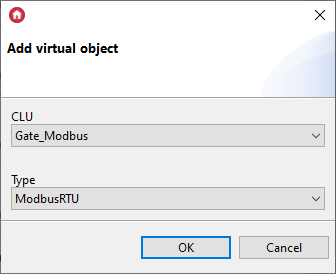

    1. Create a ModbusRTU virtual object:



    2. The default communication parameters of the recuperator on the connector supporting the Modbus RTU protocol are 19200bd, 8 data bits, 2 stop bits, no parity.

      For the default settings, enter the values ​​of Embedded features in ModbusRTU virtual objects as follows:


      * Device status (0 - device off, 1 - device on):

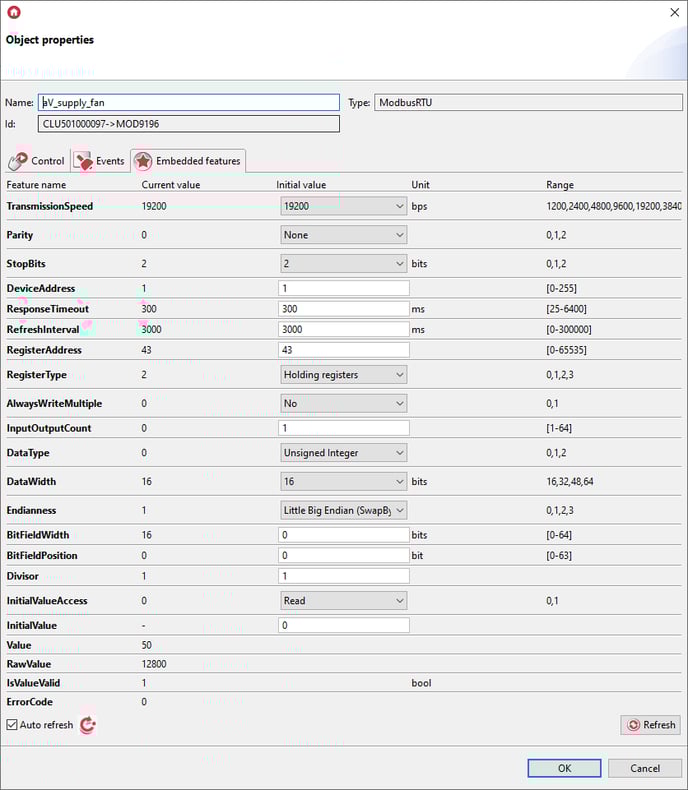

      * Supply fan control level (in %):


      * Exhaust fan control level (in %):

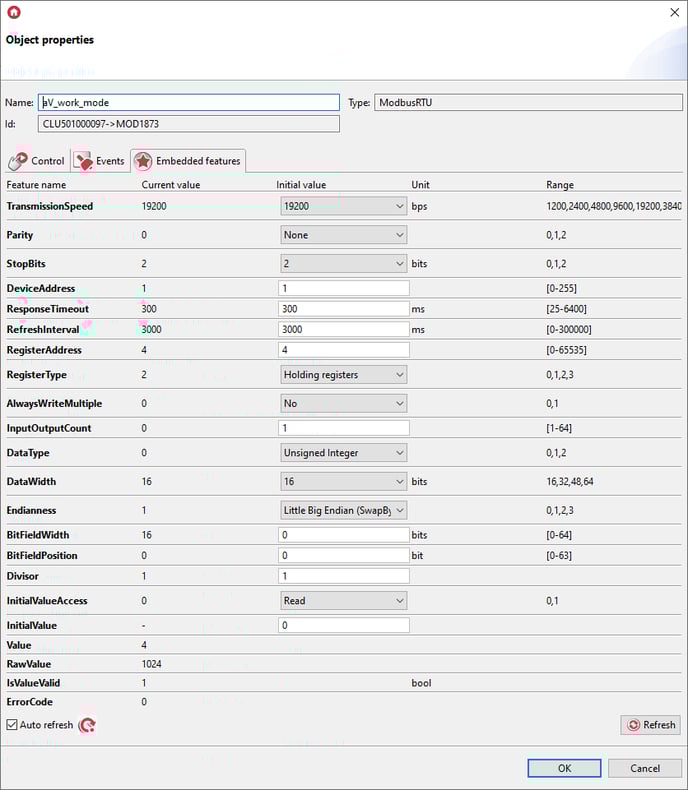

      * Work mode (3 - gear 1, 4 - gear 2, 5 - gear 3):


      * Supply temperature:


      * Exhaust temperature:


      *Bypass status (1 - open, 0 - closed):


      * Ground heat exchanger status (1 - active, 0 - inactive):


      * Ventilation mode (1 - active, 0 - inactive):


      * Party mode (1 - active, 0 - inactive):

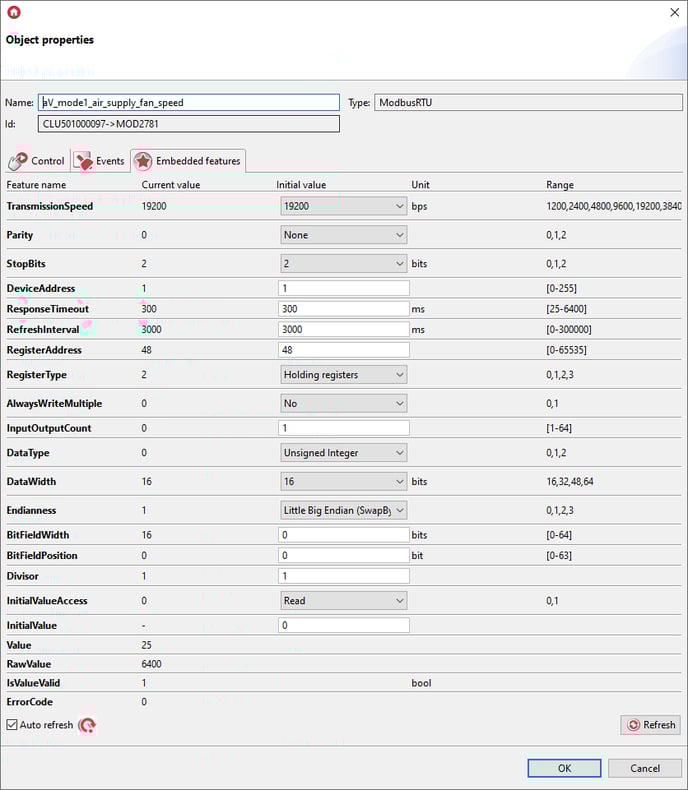

      * Air supply fan speed - gear 1 (in %):


      * Air exhaust fan speed - gear 1 (in %):

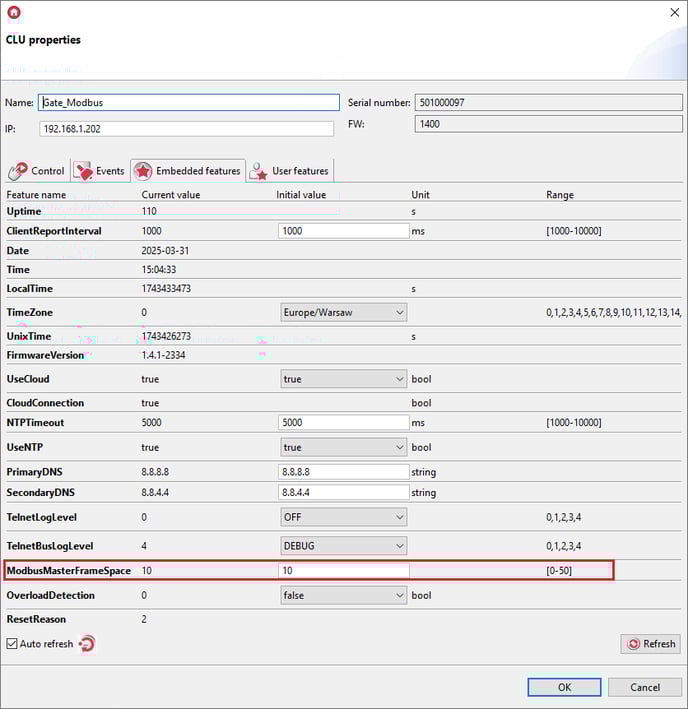

    3. Change to 10 the value of the ModbusMasterFrameSpace feature in the Gate Modbus module:



    4. Send the created configuration to the Gate Modbus module.

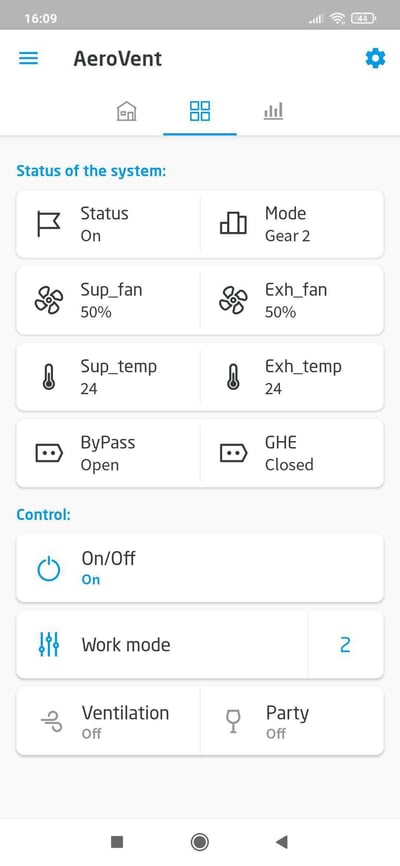

    Example of myGrenton interface for controlling the aeroVent recuperator:

    Screenshot_2025-03-31-16-09-01-677_com.grenton.mygrenton



    Integration manual created in cooperation with:

    aeroVent
