Note! The following instruction is dedicated for the second generation of Modbus Gate module (FW: 1.1.10-2140)!
The purpose of this article is presenting an integration of Grenton system with Wanas recuperator using Modbus RTU communication protocol.
The user manual is available at: Wanas - documentation
The integration allows to read the value of (for example):
- air supply gear;
- air exhaust gear;
- air supply temperature;
- air exhaust temperature.
In order to execute this integration, there are needed:
- Gate Modbus (named Gate_Modbus)
- Recuperator Wanas (e.g. Wanas 555 V_XF)
Configuration of Modbus virtual objects

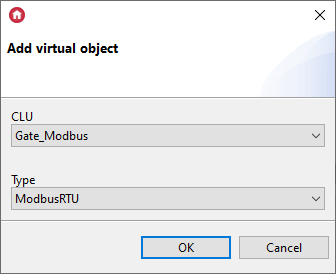

1. Add Modbus virtual object on Gate_Modbus:
2. For default settings of recuperator - enter the values of Embedded features in Modbus virtual objects as follows:
* Air supply gear:

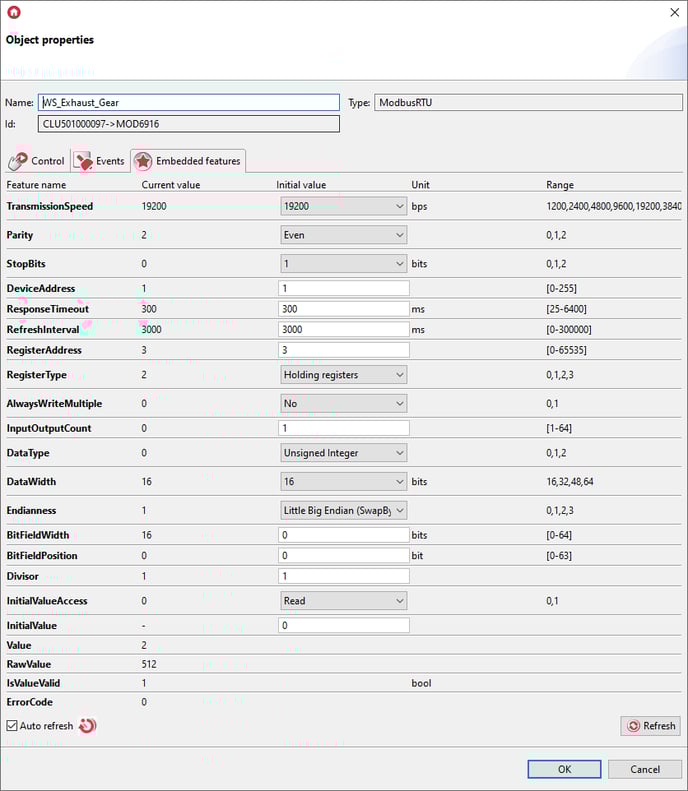

* Air exhaust gear:
* Air supply temperature:
![](https://knowledgebase.grenton.com/hubfs/Knowledge%20Base%20Import/s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction35168595618originalkLuVckW6XMUXtg0T7LZ-UoblYMbpZgBddA-2.png)
* Air exhaust temperature:
![](https://knowledgebase.grenton.com/hubfs/Knowledge%20Base%20Import/s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction35168595629originalvARVxDIzD8YEPCiz8_vcGuR03q21ODMsXg-2.png)

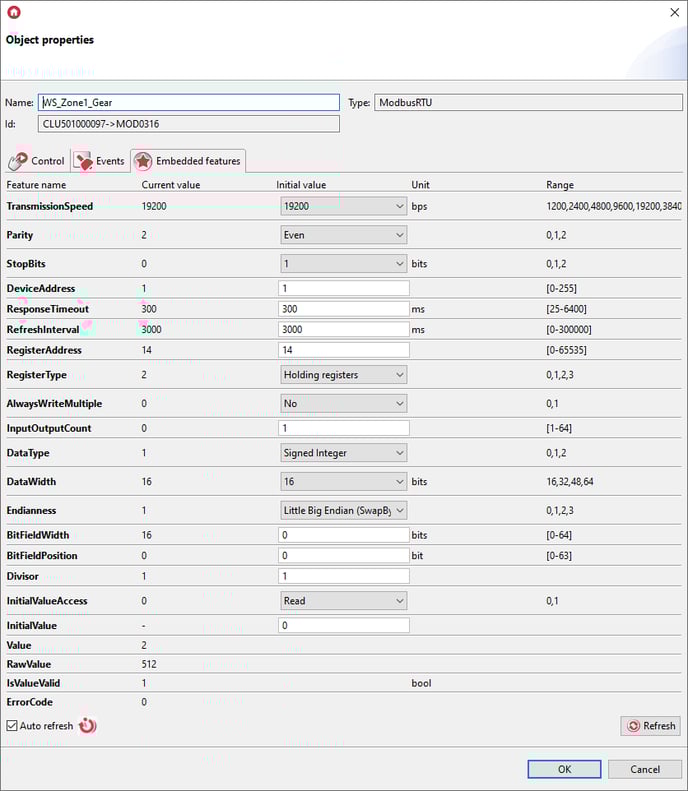

* Gear of zone 1 (also Write function is available):
![](https://knowledgebase.grenton.com/hubfs/Knowledge%20Base%20Import/s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction35168595671originalB9wsb8pyeEmmvAgfeO2yskS1c8MCTOXbFA-2.png)

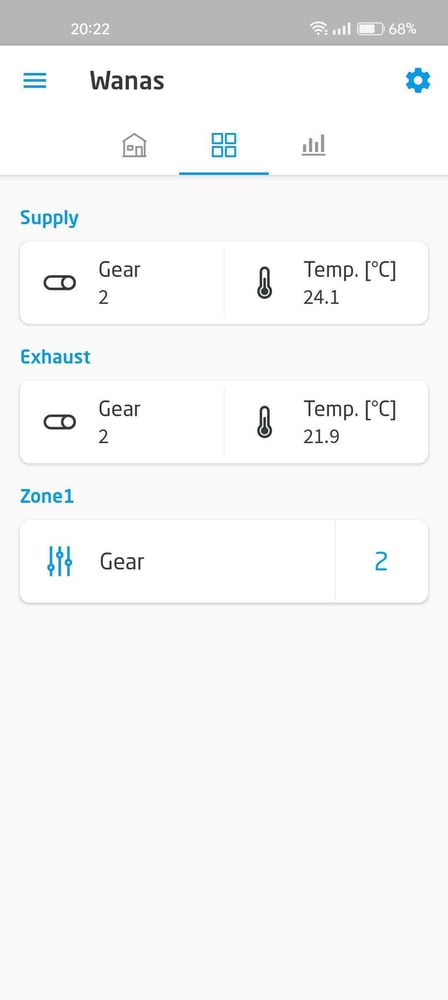

3. Send the configuration to the Gate Modbus.
